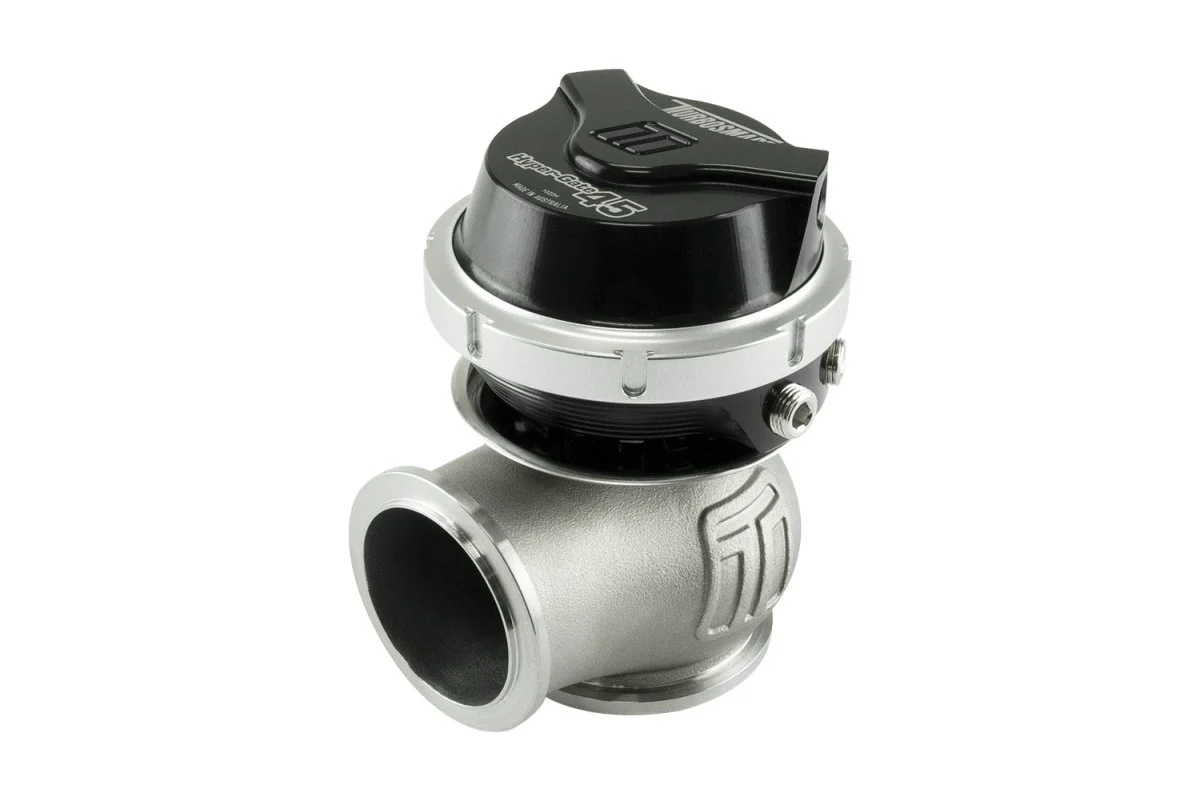

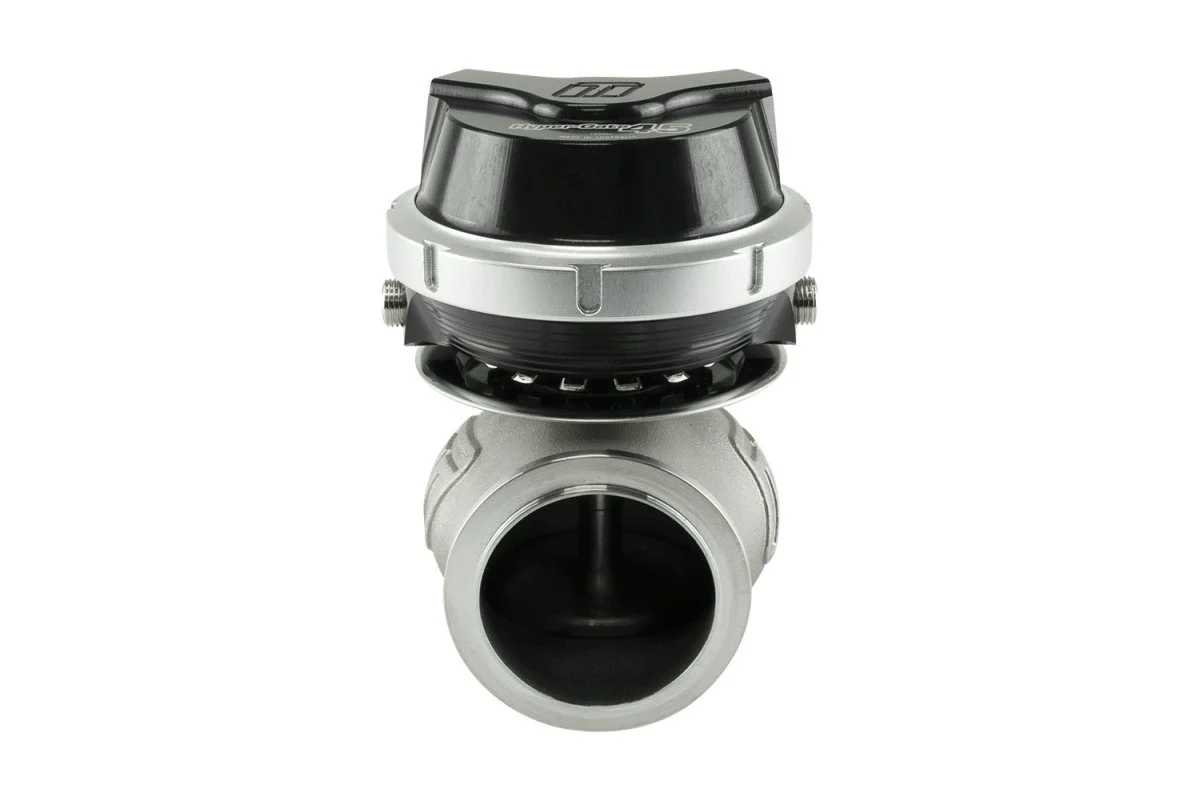

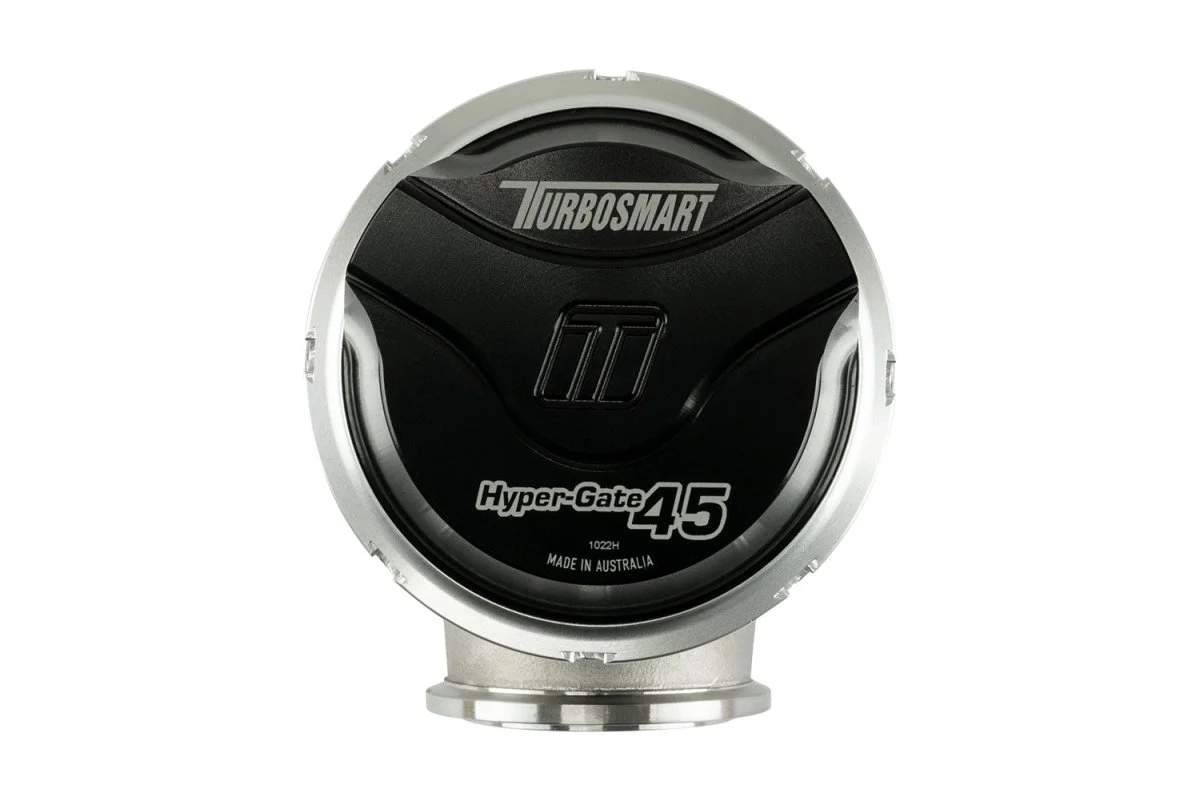

Turbosmart GenV HyperGate45 45mm External Wastegate 7PSI Black

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features:

• Class Leading Thermal Performance

• Class Leading CFD & Bench Validated Flow Performance

• Class Leading Fatigue Resistance

• Optional Liquid Actuator Cooling

• Optional Position Sensor Available Seperately

• Rotatable / Clock-able Actuator Housing

• Nitronic 60 Valve Guide & High Temp 347 SS Body

• 17-7 PH Stainless Steel Springs

• Strap Type V-band clamps

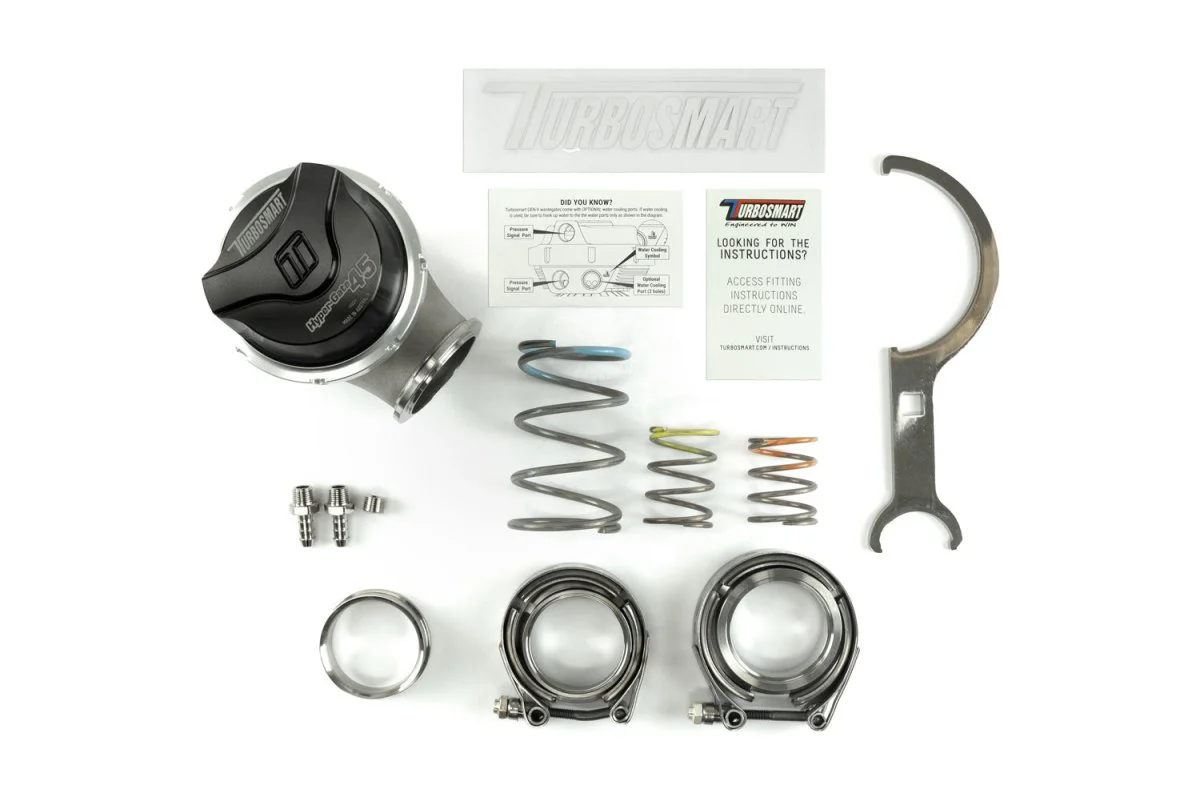

Included:

• GenV Wastegate unit
• All Springs Included
• 3.5.7.14psi (1 Inst. As per Description)
• Locking Collar Tool

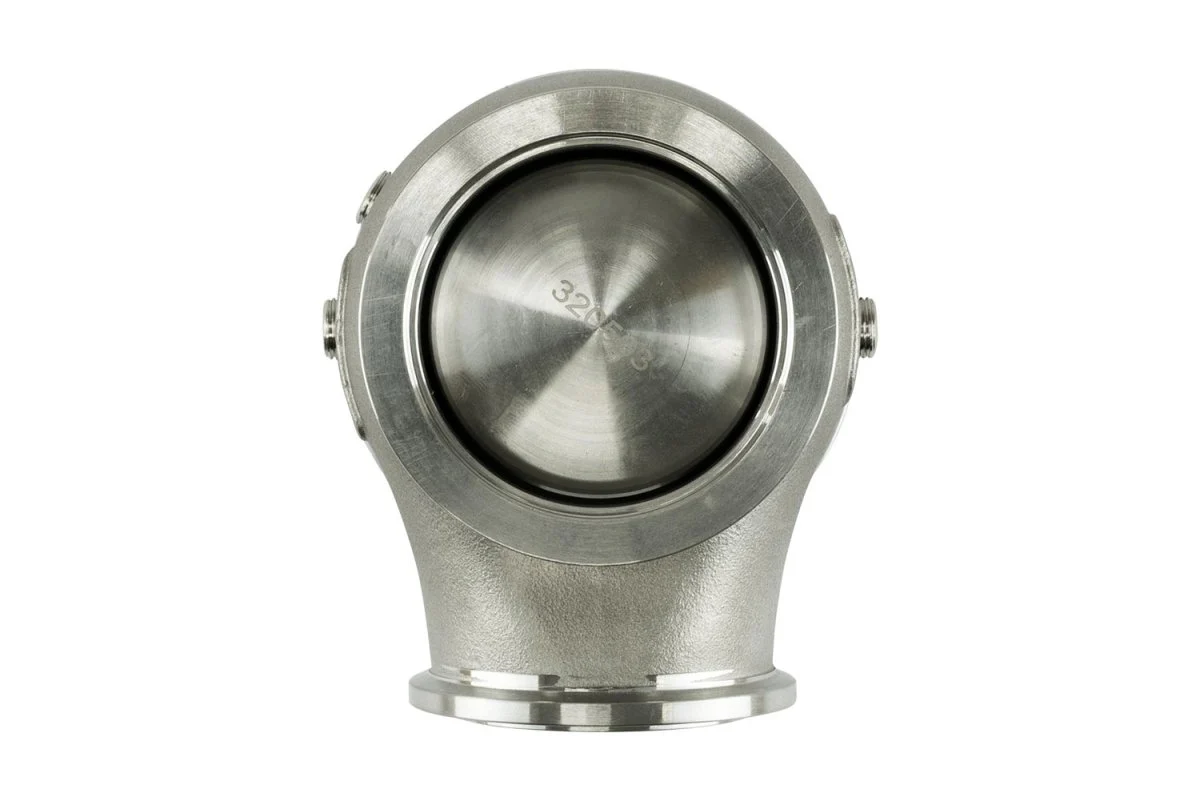

• GenV SS316 Valve seat
• Strap Type V-Bands
• Inlet & Outlet Weld Flanges
• Hose Tail & Blank Fitting Kit
• Turbosmart Decal

Installation Instructions
