Mishimoto Front Mount Intercooler Silver 2015-2021 WRX
The Mishimoto WRX Front-Mount Intercooler Kit is engineered to help your FA20DIT achieve maximum horsepower and torque by delivering superior cooling efficiency. Featuring a massive 28" intercooler core, this system provides exceptional heat dissipation without the excessive pressure drop that can stress your turbo over time. Smooth cast end tanks—CFD-tested for optimal airflow—eliminate the turbulence often created by cut-and-weld designs, ensuring consistent, reliable performance on the street, at the track, or down the quarter-mile.
This kit includes four mandrel-bent aluminum pipes for unrestricted flow. The hot-side pipes measure 2.25" to maintain high air velocity and reduce lag, while the cold-side pipes expand from 2.5" to 2.75" to match the throttle body and maximize airflow. A CNC-machined turbo flange ensures a precise, leak-free connection.
For hassle-free installation, the kit includes an application-specific crash bar that supports the intercooler and mounts using factory points—no drilling, cutting, or bumper modification required. Every bracket, coupler, and clamp is included for a clean, complete setup, and the kit pairs perfectly with the Mishimoto Performance Air Intake for even greater cooling potential.
Tested on a 265 whp Stage 2 WRX, this intercooler delivered significant intake temperature reductions and has been flow tested to support over 600 whp.
Features
- Massive 28" core delivers maximum cooling efficiency
- Smooth cast, CFD-tested end tanks for unrestricted airflow
- Hot-side piping: 2.25" mandrel-bent aluminum for fast turbo response
- Cold-side piping: 2.5"–2.75" mandrel-bent aluminum to match throttle body size
- CNC-machined turbo flange ensures a leak-free seal
- Direct-fit crash bar included—no cutting or drilling required
- Includes all brackets, couplers, and clamps for a complete installation
- Designed to pair with the Mishimoto Performance Air Intake
- Proven AIT reduction on a 265 whp Stage 2 WRX
- Flow tested to support 600+ whp
This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number: D-759

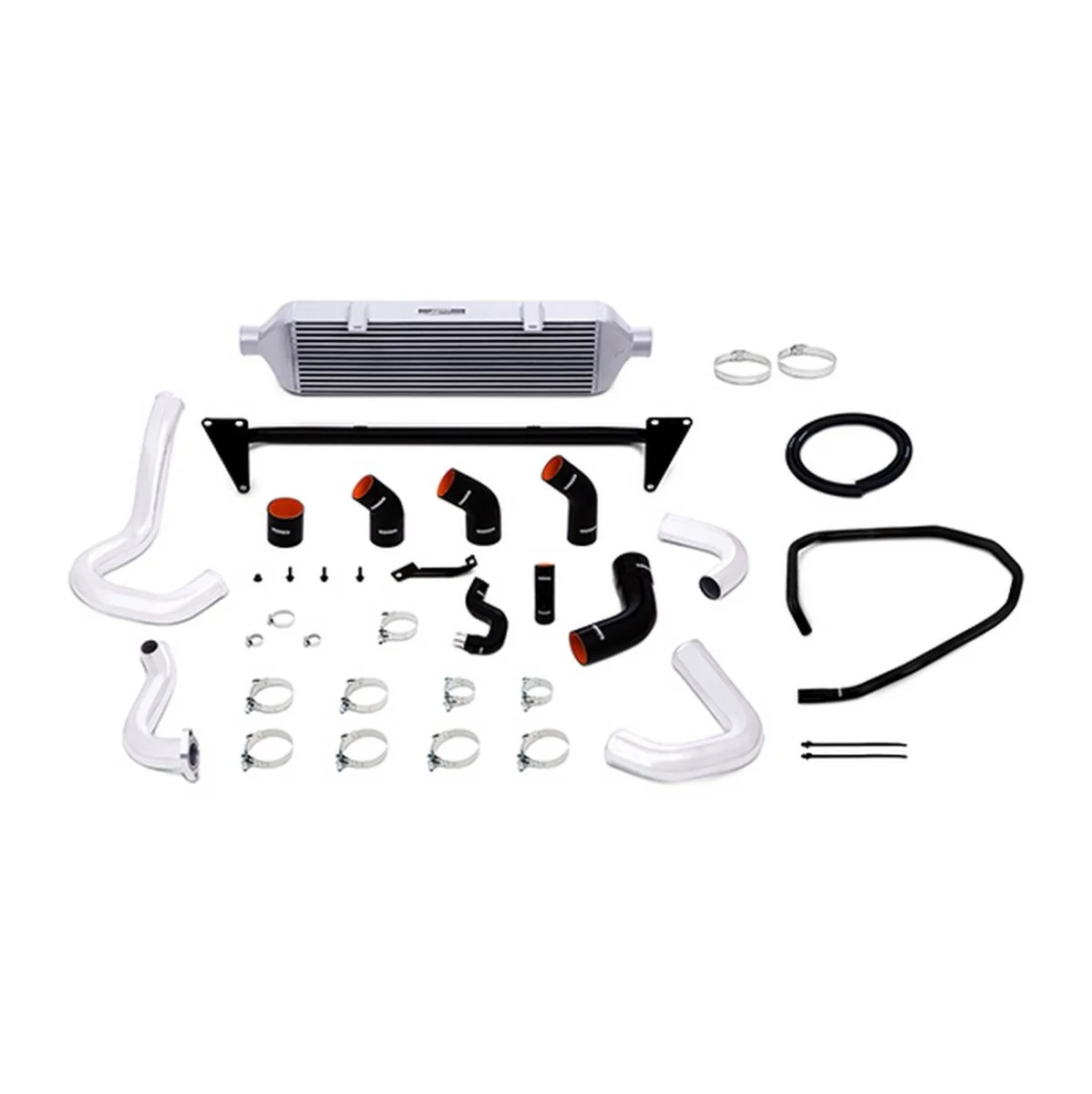

Includes:
-
(1) Bar-and-Plate Intercooler
- (1) Steel Crash Bar w/Mounting Hardware
- (2) Hot-Side Intercooler Pipes
- (2) Cold-Side Intercooler Pipes
- (1) Air Intake Bracket
- (1) 2.25-in 45-degree Coupler
- (1) 2.25-in to 2.75-in 45-degree Transition Coupler
- (1) 2.5-in to 2.75-in 55 -degree Transition Coupler
- (1) 2.5-in to 2.75-in 65 -degree Transition Coupler
- (1) 3.00-in Straight Coupler
- (1) BPV Recirculation Hose
- (1) BPV Vacuum Hose
- (1) 30-45mm Worm Gear Clamp
- (2) 1.75-in T-bolt Clamps
- (3) 2.5-in T-bolt Clamps
- (2) 2.75-in T-bolt Clamps
- (5) 3-in T-bolt Clamps
Installation Instructions
